Noise Barrier (Acoustic Barriers)

What is a Noise Barrier (Acoustic Barrier)?

A noise barrier is a sound insulation system designed to prevent traffic and environmental noise generated from transportation infrastructure such as highways, bridges, and railway lines from reaching residential areas.

Acoustic barriers (noise barriers) reduce noise levels by either reflecting or absorbing sound waves, contributing to quieter and more comfortable living environments. They are engineered according to established principles, particularly in high-traffic areas, to reduce environmental noise pollution and protect human health.

How Are Noise Barriers Manufactured?

Noise barriers are produced through an engineering-based manufacturing process that ensures both high durability and acoustic performance.

Typically, core materials with sound insulation properties are combined with surface panels made of metal, concrete, polycarbonate, or composite materials. For sound-absorbing systems, specialized acoustic materials such as mineral wool, polyurethane foam, and micro-perforated metal surfaces are commonly used.

All products are tested in accordance with international standards, including:

• EN 1793: Acoustic performance testing
• EN 14388: Design, manufacturing, and installation requirements

In addition, resistance to UV exposure, humidity, corrosion, and climatic conditions is verified through ISO 9227 salt spray testing and accelerated weathering tests.

How Do Noise Barriers Work?

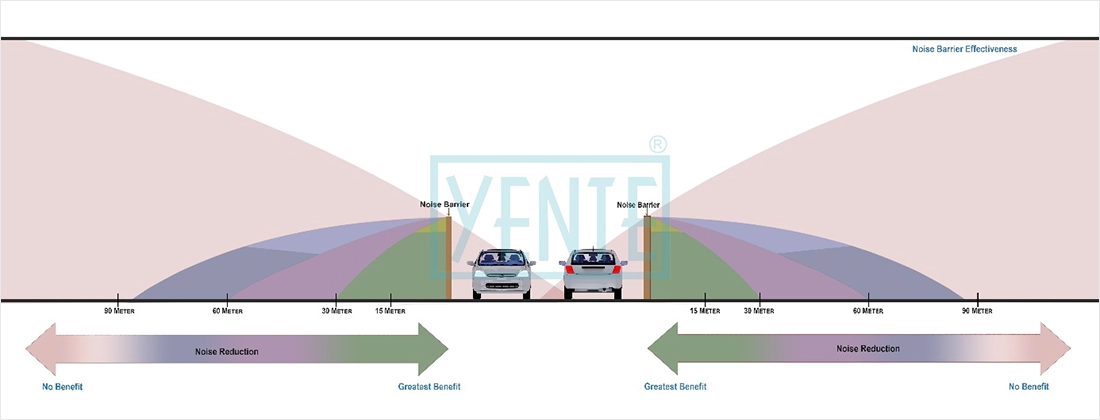

Noise barriers operate on the principle of creating an “acoustic shadow zone.” In other words, a physical barrier is placed between the noise source and the area that needs protection, preventing direct propagation of sound waves.

Noise barriers function through three main mechanisms:

• Reflection: Sound waves are reflected back toward the source
• Absorption: A portion of the sound energy is absorbed by the surface
• Diffraction control: The direction of sound wave propagation is altered

As a result, echo, resonance, and overall noise levels in the surrounding environment are significantly reduced.

The most important factors that determine the acoustic performance of a noise barrier include:

• Barrier height
• Density of the material used
• Panel surface geometry and design

With proper engineering design, these parameters can be optimized to achieve maximum sound insulation performance.

Types of Noise Barriers (Acoustic Barriers)

Noise barrier types are systems manufactured from different materials such as steel, aluminum, glass, concrete, and composite materials, depending on the application area and performance requirements, offering a wide range of acoustic and structural solutions.

• Steel Acoustic Barriers
• Aluminum Noise Barriers
• Glass Noise Barriers
• Concrete Noise Barriers
• Composite Noise Barriers

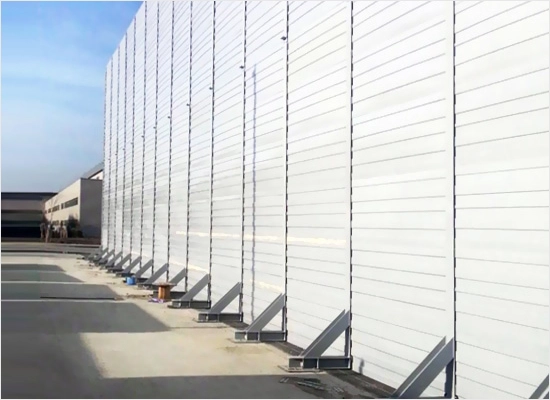

Steel Acoustic Barriers

Steel acoustic barriers are high-strength sound insulation systems used for noise control in highways, bridges, and industrial zones. Thanks to their robust steel structure, they offer strong impact resistance and long service life.

Reinforced with galvanization or special surface coatings to protect against corrosion, these systems maintain performance even under harsh weather conditions. When supported with acoustic-absorbing panels, their noise reduction capacity can be further enhanced, contributing to quieter environments.

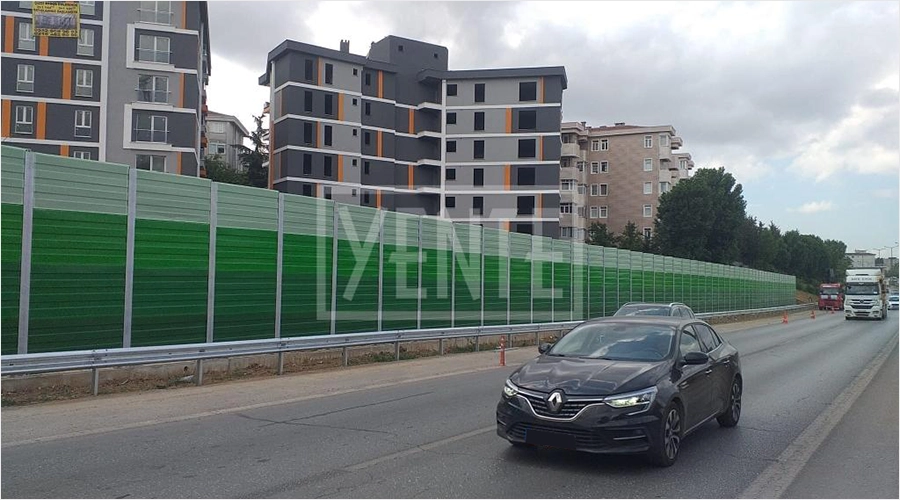

Aluminum Noise Barriers

Aluminum noise barriers are modern sound insulation systems preferred especially in bridges and viaducts where structural load capacity is critical. Their lightweight nature allows easy installation and provides effective noise control without adding significant structural load.

Due to their natural resistance to corrosion and UV radiation, they offer long-lasting performance with minimal maintenance requirements. With their flexible design options, they provide both functional and visually balanced solutions for urban and infrastructure projects.

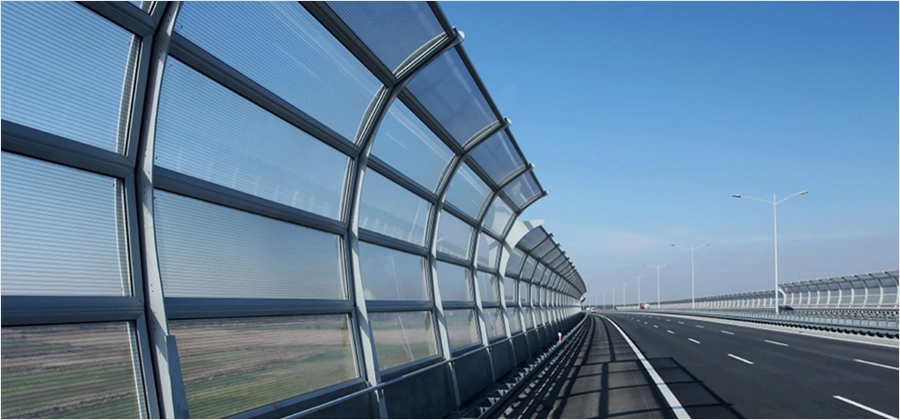

Glass Noise Barriers (Acoustic Barriers)

Glass noise barriers are modern sound insulation solutions that reduce noise while maintaining visual transparency in urban environments. Made from laminated or tempered glass panels, they provide acoustic comfort without blocking natural light, making them ideal for busy city roads.

Designed with high impact resistance, these barriers offer long-term performance against UV rays and external weather conditions. Their transparent structure ensures visual harmony with the environment, making them a preferred choice for both functional and architectural projects.

Composite Noise Barriers

Composite noise barriers are modern sound insulation solutions developed by combining different materials. This structure integrates lightweight properties, durability, and high acoustic performance within a single system, providing an effective solution for noise control.

Thanks to their flexible design, they can be easily adapted to different project requirements and deliver long-term performance even in challenging environmental conditions. Offering both noise reduction and structural efficiency, they stand out as an innovative alternative in today’s infrastructure projects.

• IGA DHMI Istanbul Airport Project
• Cildir - Aktas Border Gate (Aktas Lake Side) Noise Barrier
• Istanbul Noise Barrier
• Niger (Africa) Noise Barrier
• Bilkent Integrated Health Facility
• Highway Bridge Turkmenistan
• Arzu Bridge Turkmenistan

Applications of Acoustic Noise Barriers

Highway Noise Barriers

Highway noise barriers are designed to reduce high decibel levels generated by heavy traffic and to protect nearby residential areas. In Europe, these barriers are typically constructed at heights of 3–6 meters to ensure optimal acoustic protection along roadways.

Bridge Noise Barriers

On bridges, lightweight structure and resistance to wind loads are critical factors. Therefore, aluminum, polycarbonate, and composite panels are commonly preferred to ensure structural safety while achieving effective noise reduction.

Railway Noise Barriers

Railway noise barriers are designed to address high noise levels caused by locomotive vibrations and wheel-rail interaction. These barriers are manufactured in compliance with the EN 16272 standard and feature specialized surface treatments that absorb high-frequency metallic noise, ensuring effective noise mitigation.

Yente Acoustic Barrier Systems

Yente acoustic barrier systems are high-performance solutions developed to reduce environmental noise generated in highways, railways, and industrial areas. Thanks to their long service life, low maintenance requirements, and engineering approach compliant with international standards, they provide both acoustic efficiency and environmental compatibility.

• High resistance structure against UV radiation, humidity, frost, and harsh weather conditions
• Long-lasting performance with corrosion-protected surface systems
• Fire safety compliant materials and manufacturing approach
• Modular design enabling easy installation, maintenance, and system expansion
• Sustainable approach through recyclable aluminum use and energy-efficient production processes
• Project-based engineering: customized solutions based on road type, environmental conditions, and acoustic requirements.

Project-Based Service Approach in Acoustic Barriers

Yente provides engineering-driven, project-based solutions instead of standard products in acoustic barrier projects. Each project is evaluated according to road type, environmental conditions, and acoustic requirements.

• Project-based pricing determined according to technical specifications
• Fast quotation process supported by technical analysis
• On-site inspection when required
• Integrated design, production, and installation process.

Noise Barrier (Acoustic Barrier) Cost

Acoustic barrier cost vary depending on several technical factors such as the type of material used, system height, acoustic performance level, and overall project length. While cost differences occur between aluminum, steel, composite, or transparent panel systems, projects requiring higher sound insulation often utilize multi-layered structures with special infill materials.

In addition, installation conditions have a direct impact on pricing. Ground conditions, road geometry, bridge or viaduct applications, and special anchoring systems may increase the total project cost. Therefore, acoustic barrier pricing is determined through a project-based technical evaluation rather than a standard per-square-meter rate.

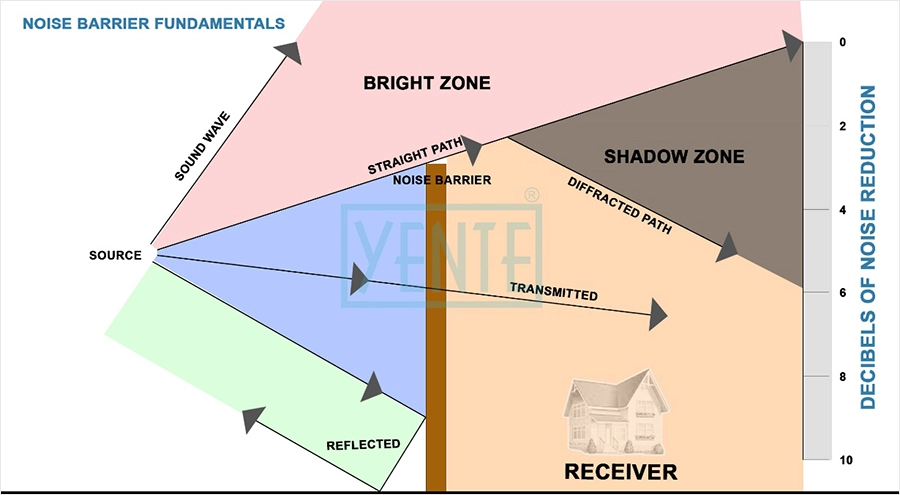

Basic Acoustic Principles of Noise Barriers

Noise barriers operate based on the principles of diffraction, absorption, and reflection. By blocking the line of sight between the noise source and the receiver, barriers prevent direct sound wave transmission. Acoustic surface textures on panels absorb wave energy, reduce reflections, and provide a noise reduction level of approximately 8–20 dB in the protected area.

Design Standards for Roadside Noise Barriers (EN, ISO, FHWA Guidelines)

• EN 1793 & EN 1794: Standards for acoustic performance and structural integrity
• ISO 140 & ISO 10140: Laboratory methods for acoustic measurement
• FHWA Highway Noise Barrier Design Manual (USA): Federal design criteria for highway noise barriers

These standards provide international guidance for barrier height, material selection, wind load resistance, acoustic absorption, and reflection properties.

Acoustic Performance Metrics: STC, NRC, and Absorption Classes

• STC (Sound Transmission Class): Measures sound transmission loss; higher STC indicates better insulation performance.
• NRC (Noise Reduction Coefficient): Sound absorption coefficient ranging from 0 to 1.
• Absorption Classes (A–E): Defined according to EN 1793-1; Class A represents the highest acoustic performance level.

Modern composite panels are typically certified with B3 reflection control and A3–A4 absorption classes.

Transparent Noise Barrier Panels: Polycarbonate and Acrylic Solutions

Polycarbonate and acrylic panels are preferred in urban environments to maintain visibility and aesthetic appeal. UV-stabilized coatings prevent yellowing and cracking while providing high impact resistance and glass-like transparency.

Corrosion and Weather-Resistant Noise Barrier Technologies

Modern noise barriers are manufactured using durable materials and advanced surface protection systems to ensure long service life and high performance under harsh environmental conditions.

These systems offer strong resistance to humidity, rain, snow, UV radiation, temperature fluctuations, and chemical exposure, maintaining structural integrity over many years.

Key materials and coating technologies include:

• Stainless steel: Provides high corrosion resistance and long service life
• Galvanized steel: Zinc coating offers strong protection against moisture and outdoor conditions
• Anodized aluminum: Lightweight structure with high resistance to oxidation
• Special protective surface coatings: Additional protection against scratches, dirt, and chemical exposure
• Epoxy-based coatings: Enhanced corrosion resistance, especially in high-humidity and coastal areas, ensuring long-lasting performance.

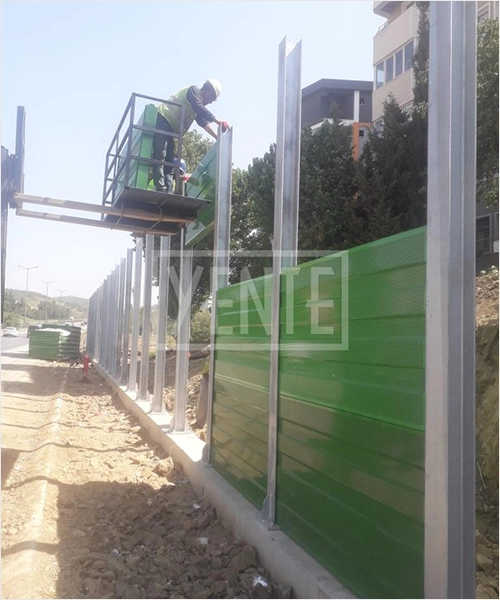

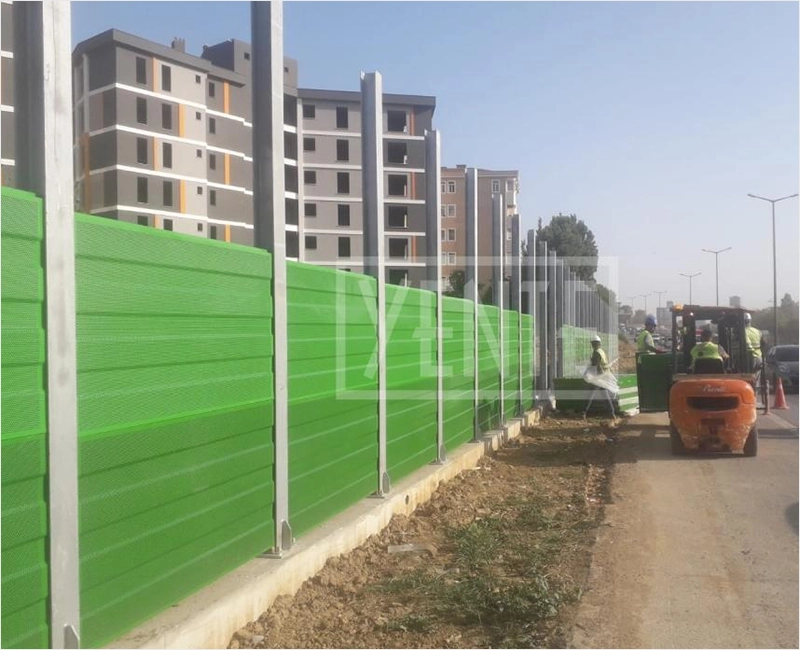

Noise Barrier Installation

Installation begins with a site inspection to determine the foundation depth, followed by the placement of steel posts. Panels are installed with consideration for wind loads and thermal expansion. In railway applications, special vibration-damping connections are often used to enhance performance.

Noise Barrier Maintenance

Annual maintenance programs are essential to ensure long-term barrier performance. These programs include corrosion inspections, surface cleaning of panels, repair of damage caused by impact or external factors, and renewal of UV-protective coatings. For transparent panels, regular inspections are particularly important to prevent and monitor surface scratches.

Noise Barrier (Acoustic Barriers) Frequently Asked Questions

What is a Noise Barrier? (Short Answer)

A noise barrier is a sound insulation system designed to prevent noise from road traffic, railway lines, and industrial areas from reaching residential zones. It reduces noise levels by reflecting or absorbing sound waves, creating a quieter environment.

How Does an Acoustic Barrier Work?

Acoustic barriers act as a physical obstruction between the noise source and the protected area, blocking direct sound propagation. Part of the sound waves is reflected from the surface, while another portion is absorbed by specialized sound-absorbing materials. As a result, the noise level reaching the other side is significantly reduced.

What Factors Affect Noise Barrier Prices?

Noise barrier prices vary depending on technical factors such as material type, barrier height, acoustic performance level, and project length. In addition, ground conditions, installation requirements, and structural support systems directly influence the total cost.

What Materials Are Noise Barriers Made Of?

Noise barriers are commonly manufactured from steel, aluminum, glass, concrete, and composite materials. Material selection depends on project requirements, environmental conditions, and the desired sound insulation performance.

Can Acoustic Barriers Be Customized?

Yes, acoustic barrier systems can be customized according to project needs. Different color options, surface finishes, and design variations allow integration with both technical requirements and surrounding architectural environments.

Do Noise Barriers Comply with Standards?

Noise barriers are designed and manufactured in accordance with international noise and structural safety standards. This ensures required acoustic performance levels are met and facilitates project approval processes.

What is the Lifespan of Noise Barriers?

The lifespan of noise barriers depends on the material used, environmental conditions, and maintenance practices. With proper material selection and regular maintenance, these systems can maintain their performance for many years.
